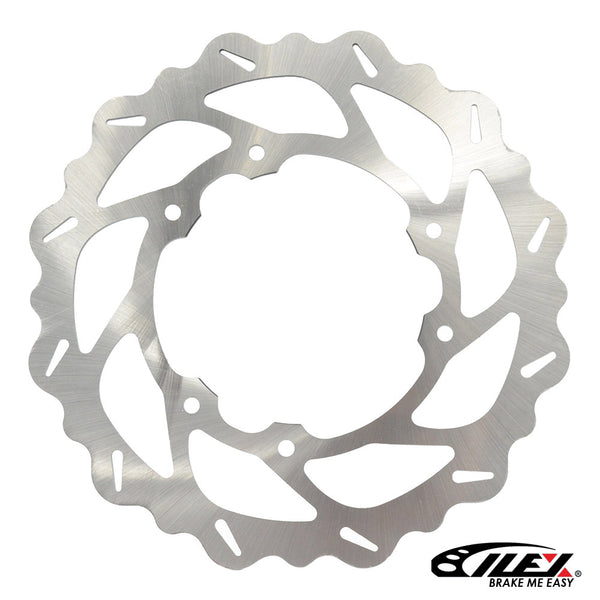

FRONT DISC
- Outer diameter : 220mm
- Internal diameter : 100.5mm
- Diameter of center-to-center of rotor-hat mounting holes：120mm
- Hole diameter : 6.5mm
- Thickness : 3.0mm
- Number of holes : 6
- Material：STAINLESS SUS410
- Front Brake Pad：SPF248-119
REAR DISC
Outer diameter : 245mm
Internal diameter : 115.2mm
Diameter of center-to-center of rotor-hat mounting holes：133mm
Hole diameter : 6.5mm
Thickness : 3.5mm
Number of holes : 6
Material：STAINLESS SUS410
Rear Brake Pad：SPF209-084/3
